Subcase Creation Tutorial

  1. Enter Static in Subcase name field.
  2. Select Label check box.
  3. Enter Force in Label field.

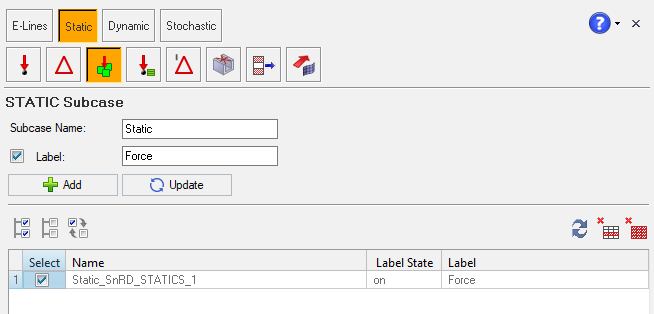

    Define New Subcase

    Figure 1.
  4. Click Add.
    The new subcase will be displayed in the adjacent table.
  5. Click the check box for the newly created subcase in the table.
  6. Click Next.
