SnRD Pre - Model Preparation

The steps to launch Static loadcase workflow are explained below.
  1. Launch HyperMesh Desktop 2021 from installed location.

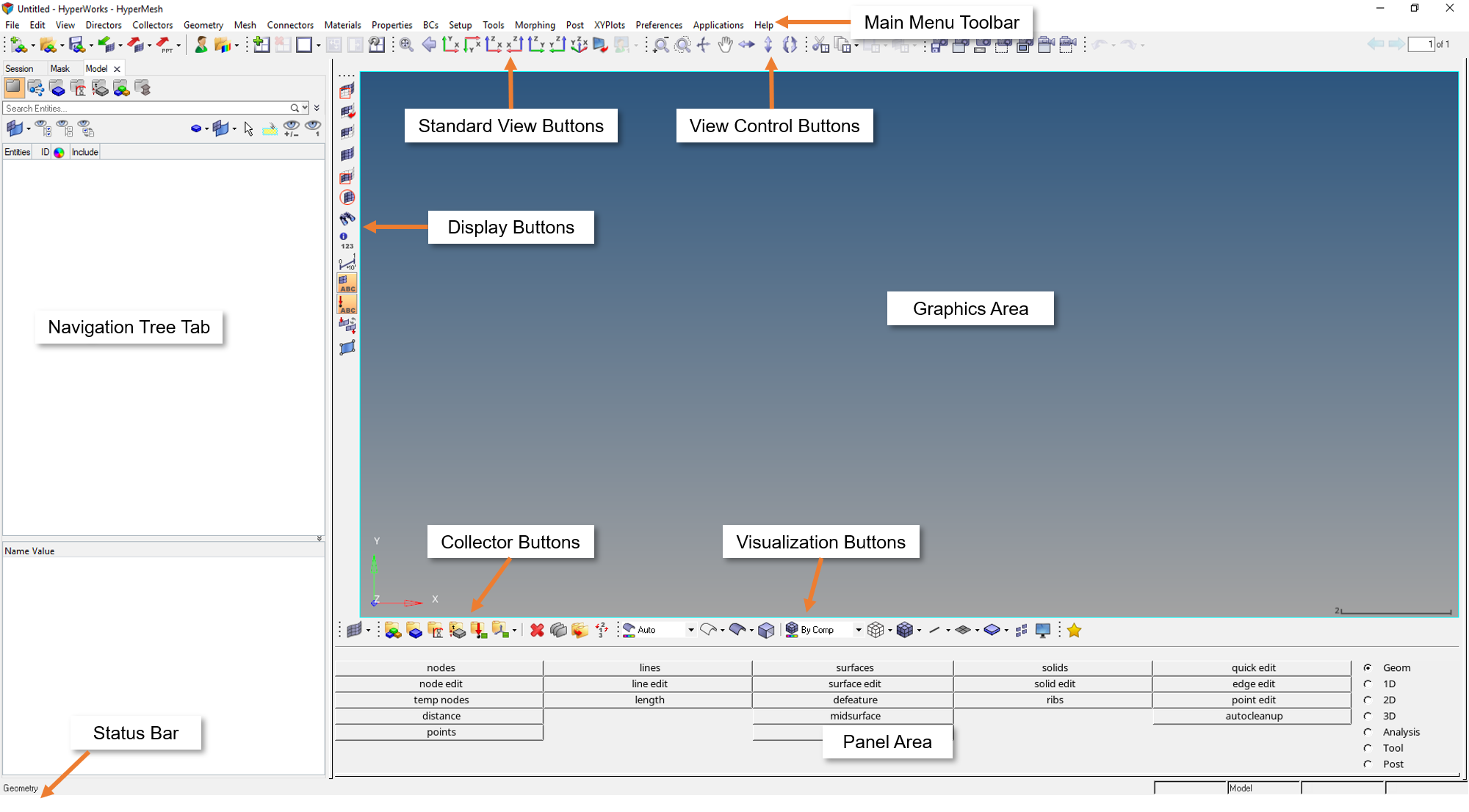

    HyperMesh Desktop 2021 will open and user interface will be displayed as shown below.


    Figure 1.
  2. Click Directors > SNRD


    Figure 2.

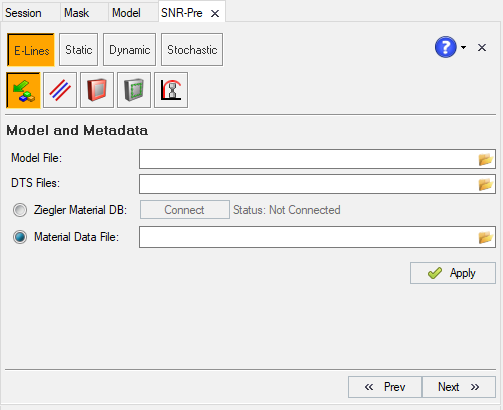

  3. All the pre processing tasks will be loaded and displayed in the SNR-Pre tab.


    Figure 3.
    The next step in the process is to define the Process Parameters.

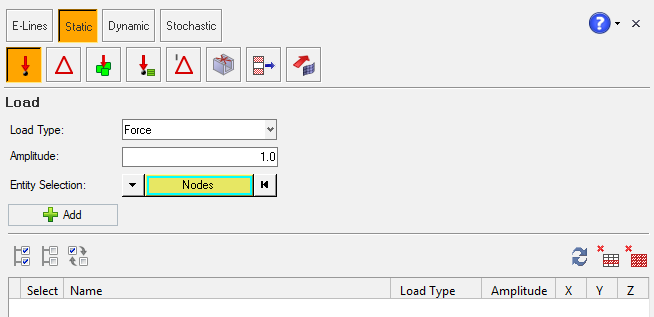

  4. Click Static in the tab to view the static load case definition tasks.


    Figure 4.

You can refer to Process Parameters - Importing Files through to Material Mapping section under SnRD Pre - Model Preparation for Risk and Root Cause (Dynamic) Analysis workflow.
