Job Manager
Job Manager is designed to provide a way to interact with analysis jobs created through the NVH Director.
To invoke the Job Manager, click the
icon.
Figure 1.
Job Manager Toolbar
Figure 2.
 |
Job Import and Path Check |
 |
Job Export |
 |
Job Path Check |
 |
Delete an existing job record |
 |
Re-run a job |
 |
Stop a running job |
 |
Update the job list |
 |
Select all jobs in the table |
 |
De-select all jobs |
 |
Select those jobs not previously selected |
 |
Show the log window |
 |
Opens the Filter jobs dialog |

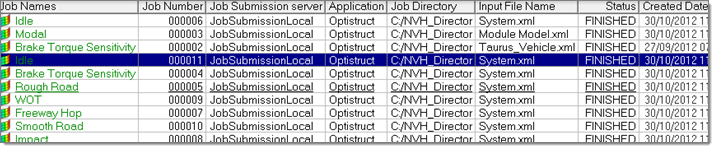

Job Table
Provides a list of all the jobs created as part of a project. Columns in the table
include:
Figure 3.
Figure 3.
- Job Names
- Name of the analysis defined in the Analysis Manager.
- Job Number
- Job sequence ID.
- Job Submission server
- Server to which the job was submitted to.
- Application
- Solver that was used to perform the analysis.
- Job Directory:
- This is typically the directory where the input .xml file is located.
- Input File Name
- NVH Director model .xml file.
- Status
- Job completion status.
- Created Date
- The date a job was created or modified.

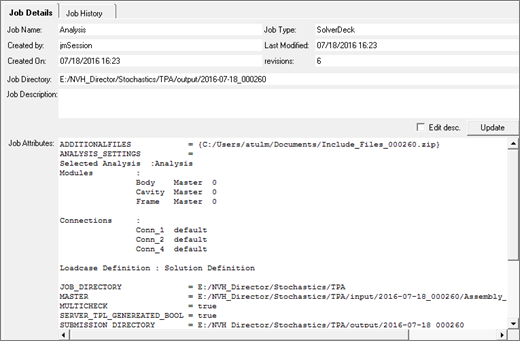

Job Details
Provides a record of why each job was run, and how the model was set up. There is also an
option to add/edit the job description.
Figure 4.
Figure 4.
Result Files
Provides easy access to result files generated in each job by the solver.
Figure 5.
Figure 5.
