Rapidly change the shape of the FE mesh without severely sacrificing the mesh quality and create, edit, and apply
shapes for subsequent design optimization studies.
The Design Space environment is dedicated to topology optimization model build and setup. It facilitates rapid model creation by generating
the voxel design space for a number of different use cases.
Many essential utility tools using HyperWorks-Tcl have been developed over the years to support Aerospace customers. A few tools have been collected and upgraded to
be compatible with this release.

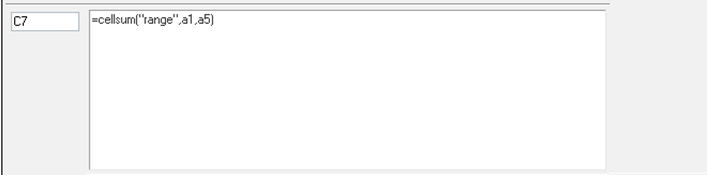

Displays the data contained in the currently selected TableView
cell.
From the Table ribbon, click the Edit tool to
display the panel.Figure 1.
To display and edit the cell's text or Templex
expression, double-click directly in a cell to enter edit mode. Figure 2.
Cell Data supports multiple lines of data similar to editing the cell directly.
Pressing Alt + Enter to add a line
break to a single cell.
Note: A cell can evaluate only one Templex expression
starting with an equals sign, “=”; multiple lines are not supported even when the
other lines contain only strings.
