/SURF/GRBRIC/FREE

Block Format Keyword Describes the free surface selection from 3D element group. Free surface is an external surface which is not connected to any other 3D element.

Format

Enter selected items numbers (any number may be input, 10 per format).
(1) (2) (3) (4) (5) (6) (7) (8) (9) (10)
/SURF/GRBRIC/FREE/surf_ID/unit_ID
surf_title
item_ID1 item_ID2 item_ID3 item_ID4 item_ID5 item_ID6 item_ID7 item_ID8 item_ID9 item_ID10

Definitions

Field Contents SI Unit Example
surf_ID Surface identifier

(Integer, maximum 10 digits)


unit_ID Unit Identifier

(Integer, maximum 10 digits)


surf_title Surface title

(Character, maximum 100 characters)


item_ID1, item_ID2,... item_IDn List of brick group identifiers

(Integer)



Comments

  1. Free surface is external surface which is not connected to any other 3D element.

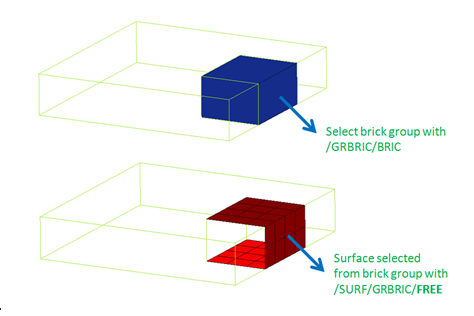

    surf_grbric_free
    Figure 1.
  2. A surface cannot be defined using Madymo surfaces.
  3. A surface cannot be defined by associating a hyper-ellipsoid and another type of surface.
